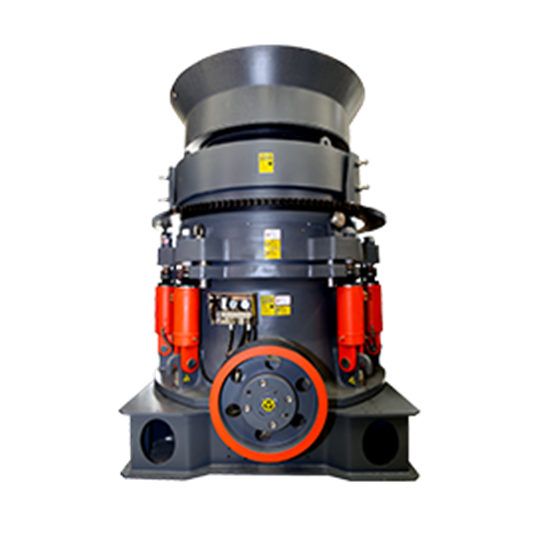

Cone Crusher

　　Technical Advantages

　　Mature and stable

　　Optimized Structure for Higher Production Efficiency

　　Thin oil lubrication

　　Full Hydraulic Control for More Convenience and Reliability

　　Investment economy

　　Inter-particle Crushing for Better Product Quality

　　Configuration science, reduced energy consumption

　　Flexible Cavity Conversation and Wide Application

When the cone crusher is working, the motor drives the eccentric sleeve to rotate through the belt pulley, V-belt, transmission shaft and bevel gear, and the main shaft rotates and swings under the force of the eccentric sleeve, so that the crushing wall above the main shaft sometimes approaches and sometimes leaves the rolling mortar wall, and the materials are continuously impacted, squeezed and bent in the annular crushing cavity composed of the crushing wall and the rolling mortar wall and are broken, The crushed material is discharged from the bottom discharge port.

Main specification

Model	Cavities	Feed opening (mm)	Minimum discharging size (mm)	Capacities (t/h)	Nominal installed power (kw)	Maximum installed power (kw)	Overall dimension (mm)
HPT100	C1(Extra Coarse)	140	19	75-140	90	90	1705×1510×1583
	C2(Coarse)	100	13	60-110
	M(Medium)	70	9	52-100
	F1(Fine)	50	9	50-95
	F2(Extra Fine)	20	6	45-90
HPT200	C2(Coarse)	185	19	145-250	160	160	2135×1750×1927
	M(Medium)	125	16	135-235
	F1(Fine)	95	13	115-220
	F2(Extra Fine)	75	10	90-190
HPT300	C1(Extra Coarse)	230	25	220-440	220	250	2725×2110×2871
	C2(Coarse)	210	19	190-380
	M(Medium)	150	16	175-320
	F1(Fine)	105	13	145-280
	F2(Extra Fine)	80	10	110-240
HPT400	C1(Extra Coarse)	295	30	300-630	315	315	2775×2370×2295
	C2(Coarse)	251	25	285-560
	M(Medium)	196	20	250-490
	F1(Fine)	110	13	180-345
	F2(Extra Fine)	90	10	135-320
HPT500	C1(Extra Coarse)	330	38	425-790	400	400	2800×3480×4050
	C2(Coarse)	290	30	370-700
	M(Medium)	210	22	330-605
	F1(Fine)	135	16	270-535
	F2(Extra Fine)	95	13	220-430
HPT800	C1(Extra Coarse)	350	38	570-1200	630	630	3970×3345×4235
	C2(Coarse)	299	32	520-1050
	M(Medium)	265	25	475-950
	F1(Fine)	220	16	370-800
	F2(Extra Fine)	150	13	310-600
NOTE: Capacity is according to medium hard limestone.The size,humidity level and characters of materical swill influence the capacity.
